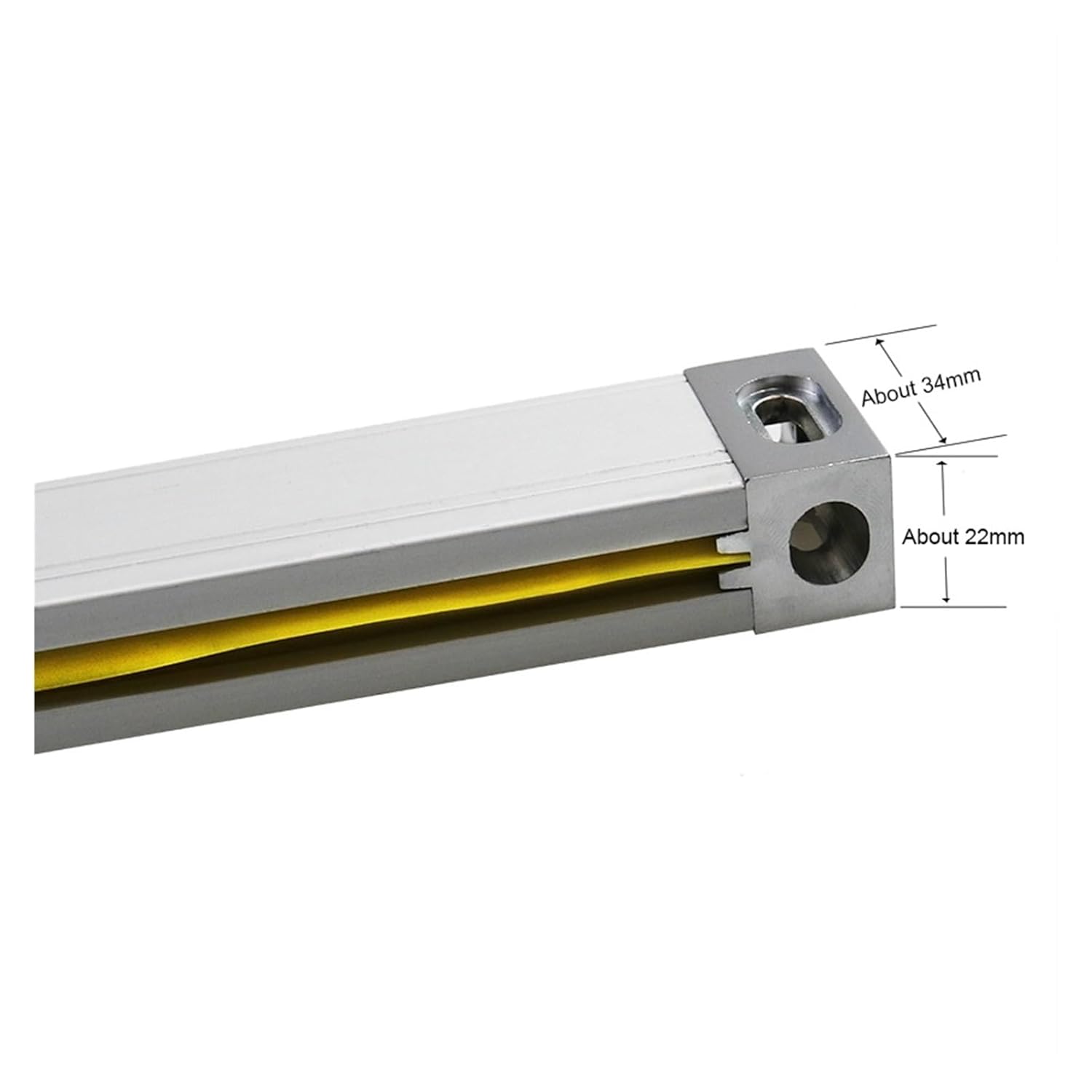

Digital Linear Scale, 2 Axis Digital Readout System + 2pcs Linear Encoder Linear Scale Dimensions 200 300 400 500 600 700 800 900mm(White)

Complete Machine tool 2 Axis Digital Readout Dro Set/Kit and 2 PCS 5u Linear Glass Scales Linear Optical Ruler for Milling/LatheDear buyer, please note1.This order are included one new dro VM600-2, it is 8 words 2 pcs 5u linear scales/encoder/sensor 50-1000mm. For example,50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm, 1000mm.digital readout functions1:zero clearing2:reset3:mm/inch mode4:ABS/INC coordinate conversion5: 200sets sub datum6:power off Memory;7:center of 1/28:liner error compensation9:sleepping mode10:Clear 200 sets Sdm datum;11:ABS/INC mode12:calculator13:drilling of circumference14:drilling of oblique line15:machining of inclined plane16:machining of circular arc17:lathe function(match)18:Rectangular lumen gradual processing19:digital filtering20:vibration filtering21:Radius /Diameter fucntion22: Lathe functiondigital readout system parameter2.Acceptable Signal: TTL3. : DB94.Acceptable resolution: 10um ,5um ,2um ,1um , 0.5um.Advantage1. It isnew 2 axis VM600-2 ,smaller, better performance. Take less space on your machines.2. We are factory, price and quality are good, can quick solve your problem, saving much tims.3. can widely used for mill, lathe, drilling, boring, wire cutting & EDM machine4 We offer different type suite for different countries if need5U Linear ScalsEncoderSensor Parameters1 Travel measuring length 01000mm 0-40inch2. Total (overall) length: Travel length + 140mm (0-1140mm)3. : DB94. Resolution: 0.005mm(5u)5. Input voltage: 5V6. Grating pitch: 0.02mm (50LP/min)7. Cable length: 3 Meter8. Normal size: About 22*34The Signal of 5uLinear Optical Ruler/Linear Glass Scales/Linear Encoder/Linear SensorPin 2 Black 0
